Two Head Stitcher OMTSN-3000

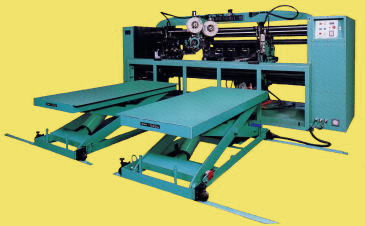

(Photo model is OMTSN-3000. Now body color is white.)

Our Stitcher are two models of the OMTSN of the manual set type and the NCTS of the automatic composition.
They are representative products of us who boasts of 600 delivery results including the old type OMTS.

Of course, stitching of one piece sheet is OK.

You can choice the stitching type; Single stitch, Double stitch, Pip-Top stitch. (Double and Pip-Top are option.)

There is a servo model to which the pitch accuracy is steadier.

We have the model for Triple wall sheet.

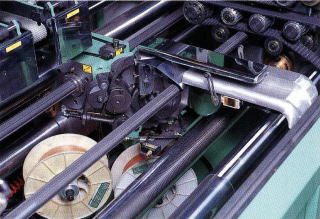

Durability and preeminent reliability stitching heads,upper and lower
Maintenance is simple and easy.

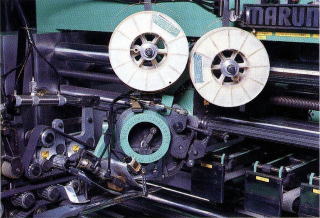

(Photo is upper stitching head.)

In the state that sheet has not insert, it doesn't start stitching.
(Safety program)

　Stitching Type
  • Single
  • Double (Option)
  • Pip-Top (Option)
An accurate stitch interval is possible by the timing belt sending.

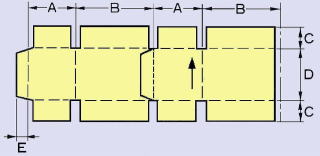

  Capable Sheet Size(two piece case / unit:mm)
OMTSN- 2100 2600 2800 3000 3200 3400
min. MAX.
A,B 200 1700 2200 2400 2600 2800 3000
A+B 400 1900 2400 2600 2800 3000 3200
C 0 650
2C+D 400
E 30 42
Using option parts (Stopper etc), MAX and min size have changed.(Ask for us about detail.)
